FBT

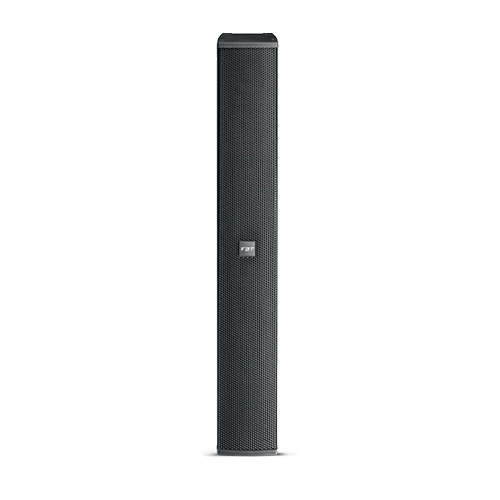

VERTUS CLA 206A

The VERTUS CLA 206A is a compact active column line array speaker, delivering 600W for low frequencies and 300W for high frequencies via Class-D amplification. Designed with two 6.5-inch custom woofers and a B&C compression driver featuring a 1.4-inch throat and 2.5-inch voice coil, the VERTUS CLA 206A ensures consistent audio performance with a frequency response from 65Hz to 20kHz. The integrated DSP includes eight EQ presets, while the large-format waveguide provides a horizontal dispersion of 100 degrees and vertical coverage of 25 degrees. Constructed from 12mm birch plywood with protective varnish and anti-slip features, it is suitable for both portable and installed applications. The VERTUS CLA 206A can operate independently, in clusters, or as a down-fill component alongside the CLA 406A. It features PowerCON connectors, multiple rigging points, a 35mm pole socket, and angled top design to support vertical dispersion adjustments, enhancing system flexibility across various acoustic environments.

Enquire now
Versatile Active Column Line Array for Precision Sound Reinforcement





The VERTUS CLA 206A is a compact, bi-amplified active column line array designed to deliver accurate sound reproduction in a range of professional audio environments. Engineered for small to mid-sized venues, the VERTUS CLA 206A combines efficient power management with precise dispersion characteristics to ensure consistent performance across varied applications. Equipped with two 6.5-inch custom woofers and a B&C neodymium compression driver, the system delivers 600 watts for low frequencies and 300 watts for high frequencies via Class-D amplification. A large-format waveguide ensures a 100-degree horizontal and 25-degree vertical dispersion, enabling uniform sound coverage in both standalone use and multi-unit configurations. The integrated DSP processor includes eight selectable EQ presets, enhancing adaptability across installation and touring contexts. Built from durable 12mm birch plywood with anti-slip and protective elements, the VERTUS CLA 206A is suitable for flown or ground-stacked setups and includes comprehensive rigging options. Its 35mm pole socket and 20-degree inclined top facilitate vertical coverage adjustments when deployed with other VERTUS CLA models. The system is particularly effective when combined with the CLA 406A or CLA 118SA subwoofer, supporting modular system expansion and broader acoustic control. Ideal for fixed installations, corporate events, worship facilities, and portable PA setups, the VERTUS CLA 206A provides a robust and scalable solution where clarity, coverage, and reliability are critical to operational performance.

Compact Bi-Amplified Design
The VERTUS CLA 206A features a two-way bi-amplified configuration delivering 600W for LF and 300W for HF, offering reliable headroom and dynamic response for speech and music applications.
Advanced Dispersion Control
With a 100° horizontal and 25° vertical dispersion via its waveguide, the VERTUS CLA 206A provides accurate sound distribution, reducing hotspots and ensuring audience coverage consistency.
Integrated DSP with Presets
Eight DSP-controlled EQ presets allow for easy optimisation of the VERTUS CLA 206A in varied acoustic environments, improving performance efficiency during setup and operation.

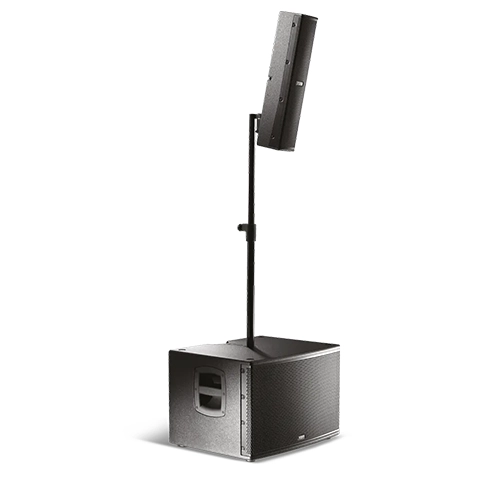

Flexible Installation Options
Designed with multiple rigging points, a pole socket, and a 20° inclined top, the VERTUS CLA 206A supports standalone, clustered, or down-fill configurations for adaptable system design.
Enquire nowDownload Datasheet
