FBT

MUSE 210LND/210LN

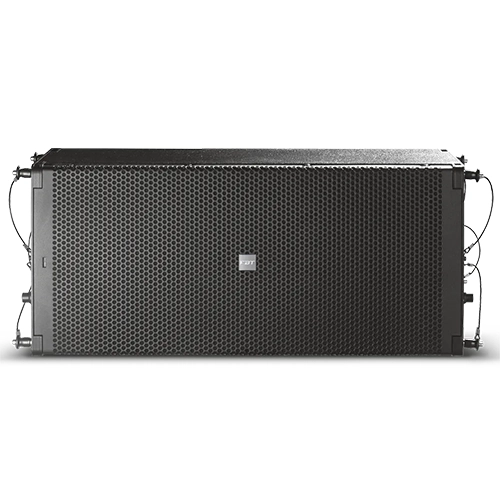

The MUSE 210LND and MUSE 210LN are advanced processed active line array systems designed for professional audio applications. Engineered for versatility, the MUSE 210LND accommodates configurations ranging from two to sixteen modules, supporting everything from small venue setups to large-scale outdoor events. Each unit features dual custom 250mm woofers with 64mm high-excursion voice coils and two B&C compression drivers with 25mm throats. A central horn and optimised waveguide, developed using BEM simulations, deliver precise 90-degree horizontal dispersion and extended frequency response from 800Hz to over 18kHz. Constructed from 15mm birch plywood, the cabinet includes integrated suspension hardware for secure rigging at variable angles. The MUSE 210LND incorporates an 800 plus 400-watt RMS amplifier with TCP IP connectivity, supporting AES70 protocol and DANTE-compatible 24-bit digital audio streaming. The system integrates with FBT’s INFINITO remote control software, housed within an aluminium chassis with intelligent ventilation and an OLED interface for efficient parameter management.

Enquire now
Advanced Line Array System for Scalable Professional Sound Reinforcement





The MUSE 210LND and MUSE 210LN are active line array loudspeaker systems engineered to deliver consistent audio performance across a wide range of professional environments. Designed for flexible deployment, the MUSE 210LND supports modular configurations from two to sixteen units, making it suitable for small-scale indoor applications through to large outdoor concerts. This adaptability allows audio professionals to deploy the system effectively in live events, fixed installations, or touring setups where precision, reliability, and clarity are essential.

Each MUSE 210LND module integrates two custom-designed 250mm woofers with 64mm high-excursion coils, alongside two B&C compression drivers with 25mm throats. These are matched with a specially engineered waveguide, offering controlled 90-degree horizontal dispersion and optimised performance from 800Hz to over 18kHz. The cabinet, made from 15mm birch plywood, incorporates robust aluminium handles and precision-designed rigging hardware, enabling secure suspension of up to sixteen units with consistent coverage.

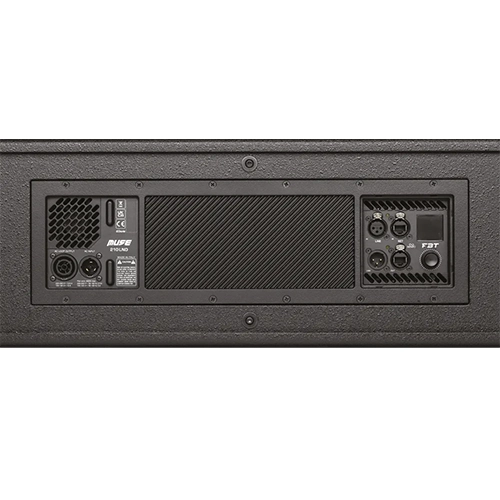

At the core of the MUSE 210LND is an 800 plus 400-watt RMS amplifier featuring TCP IP connectivity. Built to the AES70 OCA Alliance standard, the amplifier facilitates integration with Dante-enabled systems and full control via the INFINITO System Management Suite. This combination of high-quality acoustic design and intelligent networked control makes the MUSE 210LND a practical and powerful solution for demanding professional audio environments.

High-Performance Transducer Design
Equipped with custom 250mm woofers and B&C compression drivers, the MUSE 210LND ensures accurate low-frequency reproduction and articulate high-end clarity across varied applications.
Optimised Waveguide with Controlled Dispersion
The BEM-simulated waveguide delivers a consistent 90-degree horizontal coverage and maintains acoustic coherence from 800Hz to 18kHz, supporting intelligibility in complex acoustic environments.
Modular System with Secure Rigging Options
Designed for scalable deployment, the MUSE 210LND allows secure suspension of up to sixteen units, with adjustable angles for optimal sound coverage in both touring and fixed installations.
Integrated Networked Amplification and Control
The onboard 800 plus 400-watt amplifier includes a TCP IP interface for AES70-compliant control, Dante audio streaming, and seamless integration with the INFINITO remote management platform.
