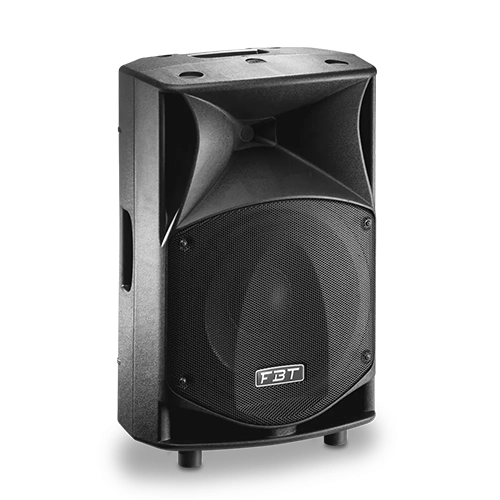

The J MAXX 112A is a high-performance two-way active loudspeaker delivering 700 watts to the low-frequency driver and 200 watts to the high-frequency driver. Engineered with a 12-inch low-frequency woofer featuring a 2-inch voice coil and a high-frequency compression driver with a 1-inch exit throat and 1-inch coil, the J MAXX 112A offers a frequency response range from 48 hertz to 20 kilohertz. Housed in a compact, lightweight cabinet at just 13.8 kilograms, it features a bi-amplified bass reflex design powered by Class D amplifiers with a switch mode power supply. The onboard DSP provides four EQ preset options for flexible sound tuning. The rear panel includes XLR input and link output, volume control, high-pass filter, EQ selection and ground lift switch. Mounting options include dual M10 suspension points, a 35 millimetre top-hat socket and a wall bracket flange plate. A 90 by 60 degree constant directivity horn and angled monitor positioning enhance versatile deployment.
The J MAXX 112A is a professional-grade two-way active loudspeaker developed to meet the demands of modern live sound, fixed installations and portable PA systems. Designed with precision and built for consistent performance, the J MAXX 112A integrates a bi-amplified bass reflex system that delivers 700 watts RMS to the low-frequency driver and 200 watts RMS to the high-frequency compression driver. It features a 12-inch woofer with a 2-inch voice coil and a 1-inch exit throat compression driver with a 1-inch coil, ensuring full-range audio reproduction with clarity across a wide frequency response of 48 hertz to 20 kilohertz. The J MAXX 112A is engineered to deliver a maximum sound pressure level of 131 decibels while maintaining a compact and lightweight profile at only 13.8 kilograms, making it ideal for mobile professionals and rental companies. Equipped with an internal DSP offering four EQ presets, the unit allows tailored sound control based on varied acoustic environments. The cabinet design includes integrated mounting options such as dual M10 suspension points, a standard 35 millimetre pole mount, and a wall bracket flange for fixed installations. A 90 by 60 degree constant directivity horn and variable stage monitor angles provide excellent flexibility for live sound reinforcement. The J MAXX 112A serves as a dependable solution for audio professionals requiring consistent output, high intelligibility, and installation versatility in both portable and installed systems.
