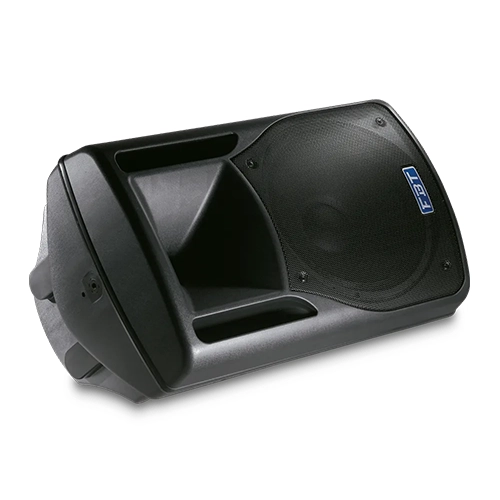

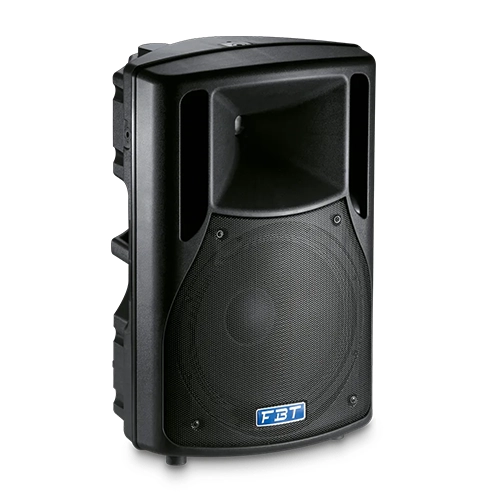

The HIMAXX 60A is a processed active speaker delivering 1100W plus 250W RMS and a maximum SPL of 135dB. Designed with a strong yet lightweight enclosure, it features an asymmetrical shape for use as a stage monitor and offers flexible installation options via integrated mounting points and optional accessories. The control panel on the HIMAXX 60A is designed for intuitive operation, supporting mic and line inputs, a 3-band EQ, auxiliary stereo input, ground-lift switch and diagnostic LED. Developed in collaboration with B&C, the loudspeaker features a rigid cone, improved airflow for reduced power compression, and a robust 75mm voice coil. The neodymium magnet enhances control and efficiency, while the compression driver delivers dynamic high-frequency performance. A high-efficiency amplifier combines a switch mode power supply with a PWM low-frequency stage and a Class G high-frequency section. The polypropylene cabinet with inert gas injection and precision reflex ducts minimises resonance and airflow turbulence, ensuring clean and accurate sound reproduction.
The HIMAXX 60A is a professional-grade processed active speaker system engineered to deliver high acoustic performance in fixed installations and live sound environments. With a total output of 1100W plus 250W RMS and a maximum sound pressure level of 135dB, the HIMAXX 60A is built to handle high-demand audio applications with clarity and control. Its robust polypropylene cabinet, developed through fluid dynamics and acoustic research, includes inert gas injection to minimise resonance and turbulence, ensuring accurate sound reproduction. The asymmetrical enclosure allows it to be deployed as a stage monitor, while integrated mounting points support flexible installation across diverse venues.
Designed in collaboration with B&C, the HIMAXX 60A features a refined loudspeaker structure with a high-performance neodymium magnet, rigid cone design, and a 75mm voice coil for improved power handling and durability. The system incorporates a newly developed amplifier with a switch mode power supply, efficient PWM technology for low frequencies, and Class G amplification for high frequencies. These design elements allow the HIMAXX 60A to combine power efficiency with reliability and low thermal output. A user-friendly control panel includes mic and line inputs, a 3-band EQ, stereo auxiliary input, ground-lift function, and diagnostic LED indicators. Suitable for professional rental, touring, or permanent installations, the HIMAXX 60A stands out as a versatile and dependable solution for audio professionals seeking consistent performance in demanding environments.
